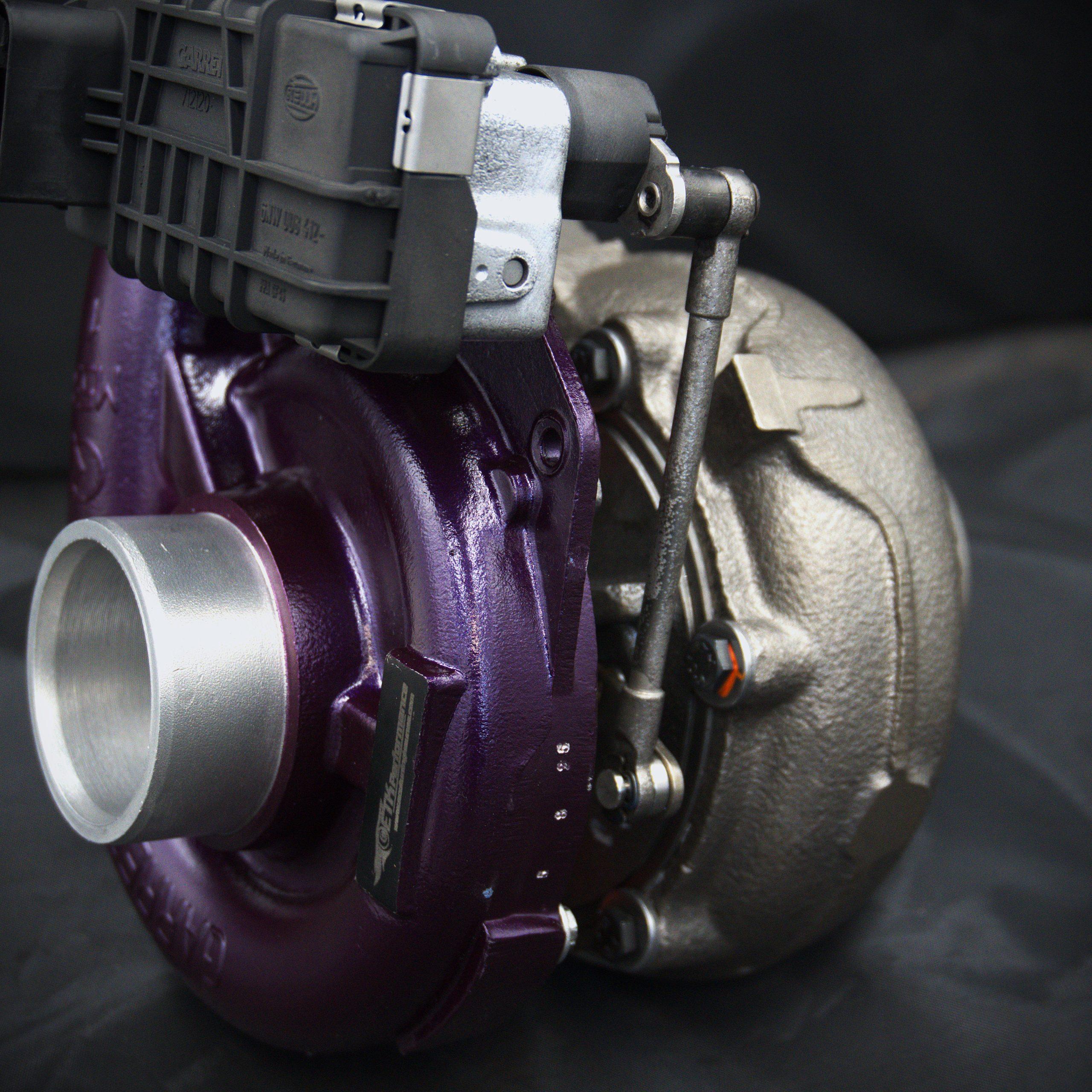

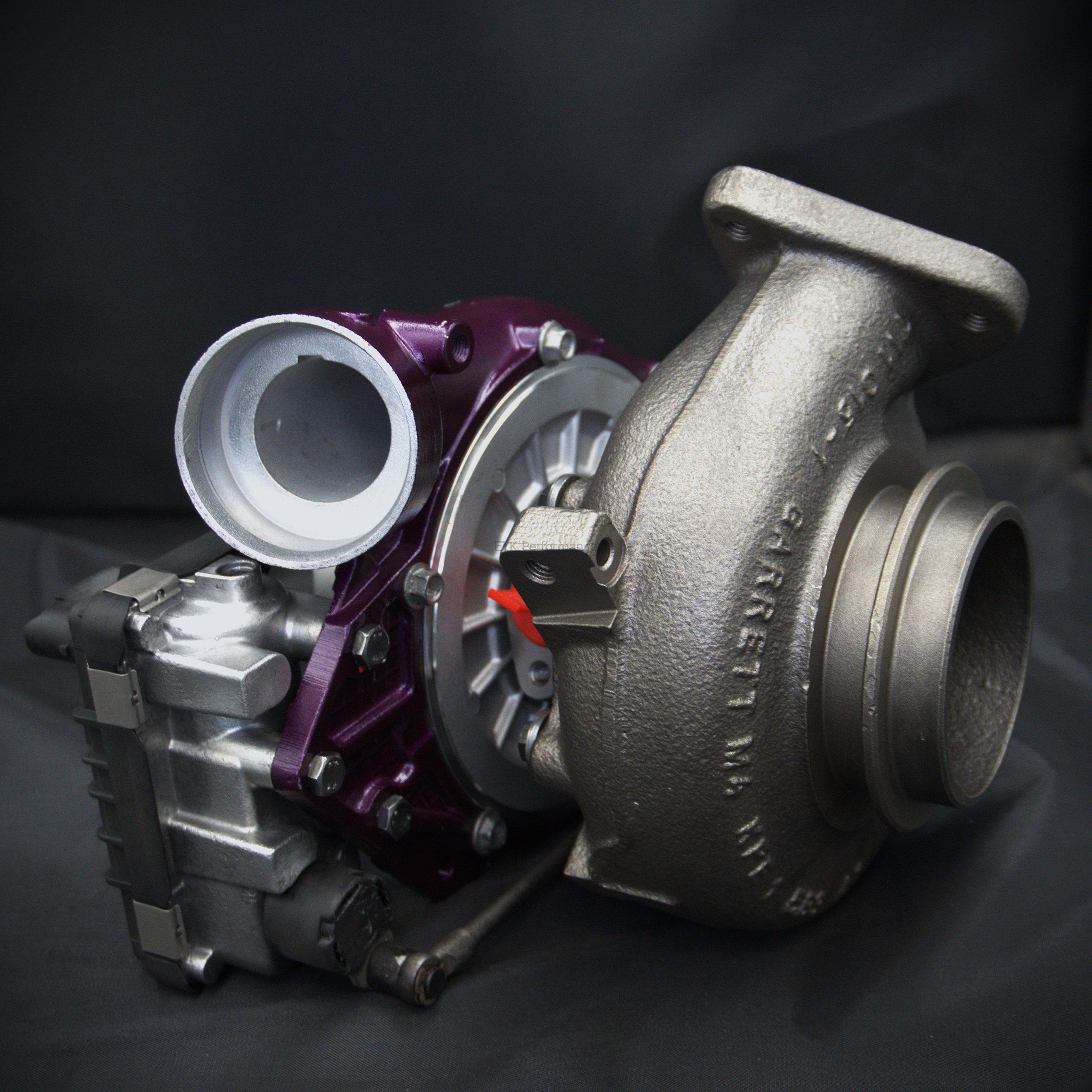

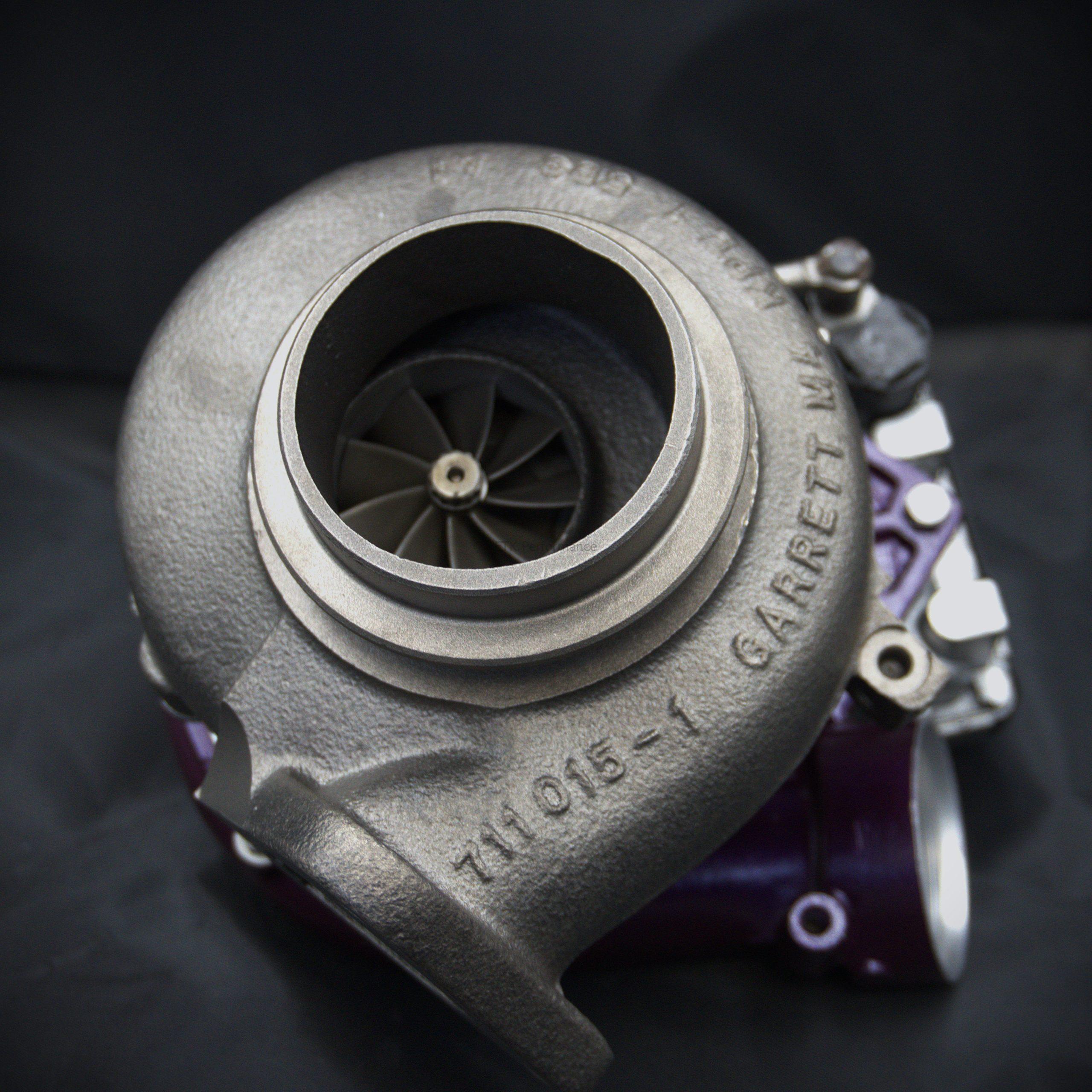

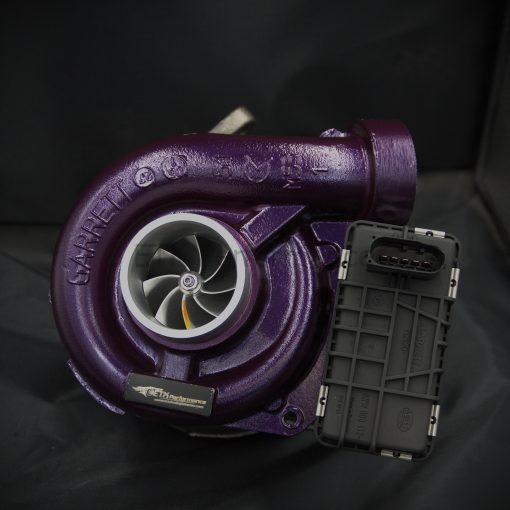

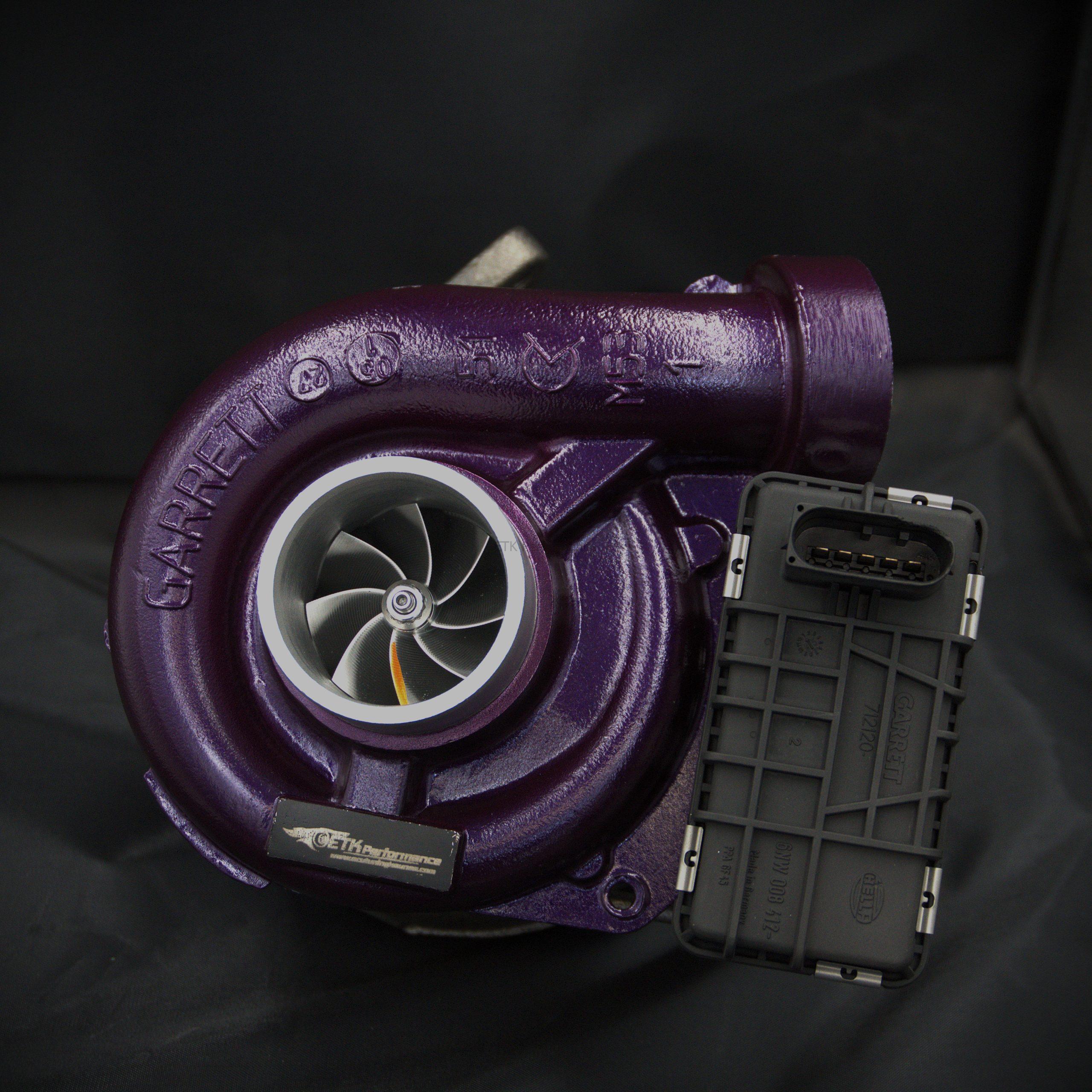

Stage 3 Hybrid Turbocharger for OM648, OM647 Mercedes CDI Engine (electric actuator) Bolt on

Worlds leading most advanced hybrid turbocharger for Mercedes – Benz.

We are manufacturing these turbochargers – not reselling.

Approved by Blacksmokeracing LTD



How it’s made:

Upgraded bearing system

Refurbished housings

Flow bench adjusted

Balanced on VSR

Manufactured from Garrett original turbocharger.

V3 Common version up to 400 HP GT2868 :

Recommended for users who don’t plan order in future PRO-Line Injectors

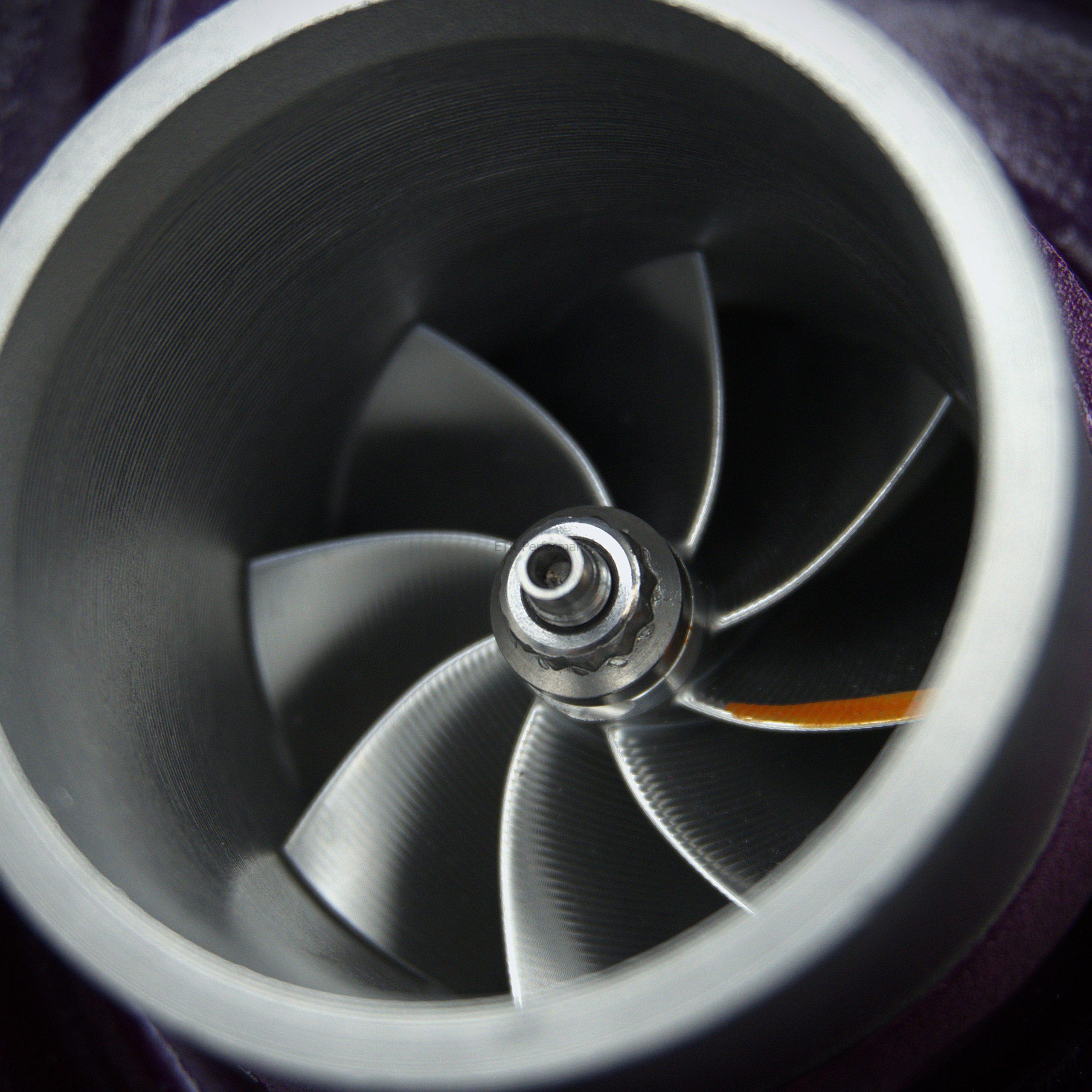

Compressor Wheel – 50/68 mm

Turbine Wheel – 51/48

Shaft upgrade for lower backpressure (better than AMG one).

V4 upgraded version 2025 GT2872 400HP:

Lightweight Compressor Wheel – 50/72 mm

Lightweight Turbine Wheel – 51/48

Drag version GT3072 (not recommended for daily driving):

Lightweight Compressor Wheel – 50/72

Lightweight Turbine Wheel – 51/53

MAX safe boost 2.7 bar or 39 PSI 400HP for V3 and V4 versions

Full boost at 2200 RPM+ for V3 and V4 versions

Drag version has little more lag.

Production time 1 – 2 weeks.

Can be done OM648, OM647, OM613, OM612, Hybrids with same spec. parameters.

COMPARISON OM647 Turbocharger (similar wheel changes in OM648):

STOCK 647 Turbocharger





DRAG Version turbocharger:

Compatibility list

PASSENGER CARS	MERCEDES	E320	2001	3.2	194	OM613	GT2359V	711017-0002	A6130960499
PASSENGER CARS	MERCEDES	E320 – 195HP	99-01	3.2L D	195HP	OM613961	GT2359V	709841-5002S	A6130960199
PASSENGER CARS	MERCEDES	E320 – 204HP	03-	3.2L D	204HP	OM648 W211	GT2359V	743436-5001S	A6480960099
PASSENGER CARS	MERCEDES	E320 CDI	1999	3.2/6	194	OM613	GT2359V	709841-0001	A6130960199
PASSENGER CARS	MERCEDES	E320 CDI	2000	3.2/6	194	OM613	GT2359V	711017-0001	A6130960299
PASSENGER CARS	MERCEDES	E320 CDI	2001	3.2/6	194	OM613	GT2359V	711017-0002	A6130960499
PASSENGER CARS	MERCEDES	E320 CDI	2002	3.2/V6	200	OM648 (W211)	GT2359V	734899-0001	A6480960099
PASSENGER CARS	MERCEDES	E320 CDI	2003	3.2/6	194	OM613	GT2359V	711017-0003	A6130960499
PASSENGER CARS	MERCEDES	E320 CDI	2003	3.2/6	194	OM613	GT2359V	709841-0002	A6130960199
PASSENGER CARS	MERCEDES	E320 CDI – 204HP	04-	3.2L D	204HP	OM648 W211	GT2359V	743115-5001S	A6480960199
PASSENGER CARS	MERCEDES	S320	2001	3.2	194	OM613	GT2359V	711017-0002	A6130960499
PASSENGER CARS	MERCEDES	S320	2003	3.2	194	OM613	GT2359V	711017-0003	A6130960499
PASSENGER CARS	MERCEDES	S320	2003	3.2	194	OM613	GT2359V	709841-0002	A6130960199
PASSENGER CARS	MERCEDES	S320 – 195HP	99-02	3.2L D	195HP	OM613961	GT2359V	709841-5002S	A6130960199
PASSENGER CARS	MERCEDES	S320 CDI	03-	3.2L D		OM648 W220	GT2359V	743436-5001S	A6480960299
PASSENGER CARS	MERCEDES	S320 CDI	03-	3.2L D		OM648 Euro 4	GT2359V	743115-5001S	A6840960199
PASSENGER CARS	MERCEDES	S320 CDI	2001	3.2/6	194	OM613	GT2359V	711017-0002	A6130960499
PASSENGER CARS	MERCEDES	S320 CDI	2003	3.2/6	194	OM613	GT2359V	709841-0002	A6130960199
PASSENGER CARS	MERCEDES	S320 CDI	2003	3.2/6	194	OM613	GT2359V	711017-0003	A6130960499
PASSENGER CARS	MERCEDES	C270 – 170HP	01-	2.7L D	170HP	OM612962	GT2256V	711009-5002S	A6120960999
PASSENGER CARS	MERCEDES	C270 CDI	2000	2.7/5	169	OM612 (W203)	GT2256V	711009-0001	A6120960499
PASSENGER CARS	MERCEDES	C270 CDI	2003	2.7/5	169	OM612 (W203)	GT2256V	711009-0002	A6120960999
PASSENGER CARS	MERCEDES	E270 – 163HP	00-02	2.7L D	163HP	OM612961	GT2256V	709837-5002S	A6120960299
PASSENGER CARS	MERCEDES	E270 CDI	1999	2.7/5	168	OM612	GT2256V	709837-0001	A6120960299
PASSENGER CARS	MERCEDES	E270 CDI	2002	2.7/5	175	OM647 (W211)	GT2256V	727463-0001	A6470960099
PASSENGER CARS	MERCEDES	E270 CDI	2003	2.7/5	168	OM612	GT2256V	715910-0002	A6120960599
PASSENGER CARS	MERCEDES	E270 CDI	2003	2.7/5	168	OM612	GT2256V	709837-0002	A6120960299
PASSENGER CARS	MERCEDES	E270 CDI – 177HP	02-	2.7L D	177HP	OM612961	GT2256V	715910-5002S	A6120960599
PASSENGER CARS	MERCEDES	ML270	2003	2.7	168	OM612	GT2256V	709837-0002	A6120960299
PASSENGER CARS	MERCEDES	ML270 – 163HP	00-05	2.7L D	163HP	OM612963	GT2256V	709837-5002S	A6120960299
PASSENGER CARS	MERCEDES	ML270 CDI	1999	2.7/5	168	OM612	GT2256V	709837-0001	A6120960299
PASSENGER CARS	MERCEDES	ML270 CDI	2000	2.7/5	168	OM612	GT2256V	715910-0001	A6120960599
PASSENGER CARS	MERCEDES	ML270 CDI	2003	2.7/5	168	OM612	GT2256V	709837-0002	A6120960299
PASSENGER CARS	MERCEDES	SPRINTER	2000	2.7/5	168	OM612	GT2256V	709838-0001	A6120960399
PASSENGER CARS	MERCEDES	SPRINTER	2002	2.7/5	168	OM612	GT2256V	709838-0003	A6120960399
PASSENGER CARS	MERCEDES	SPRINTER	2002	2.7/5	168	OM612	GT2256V	709838-0004	A6120960399
PASSENGER CARS	MERCEDES	SPRINTER	2004	2.7	168	OM612	GT2256V	709838-0005	A6120960399
PASSENGER CARS	MERCEDES	Sprinter Van	00-	2.7L D		OM612	GT2256V	709838-5005S	6120960399

–
