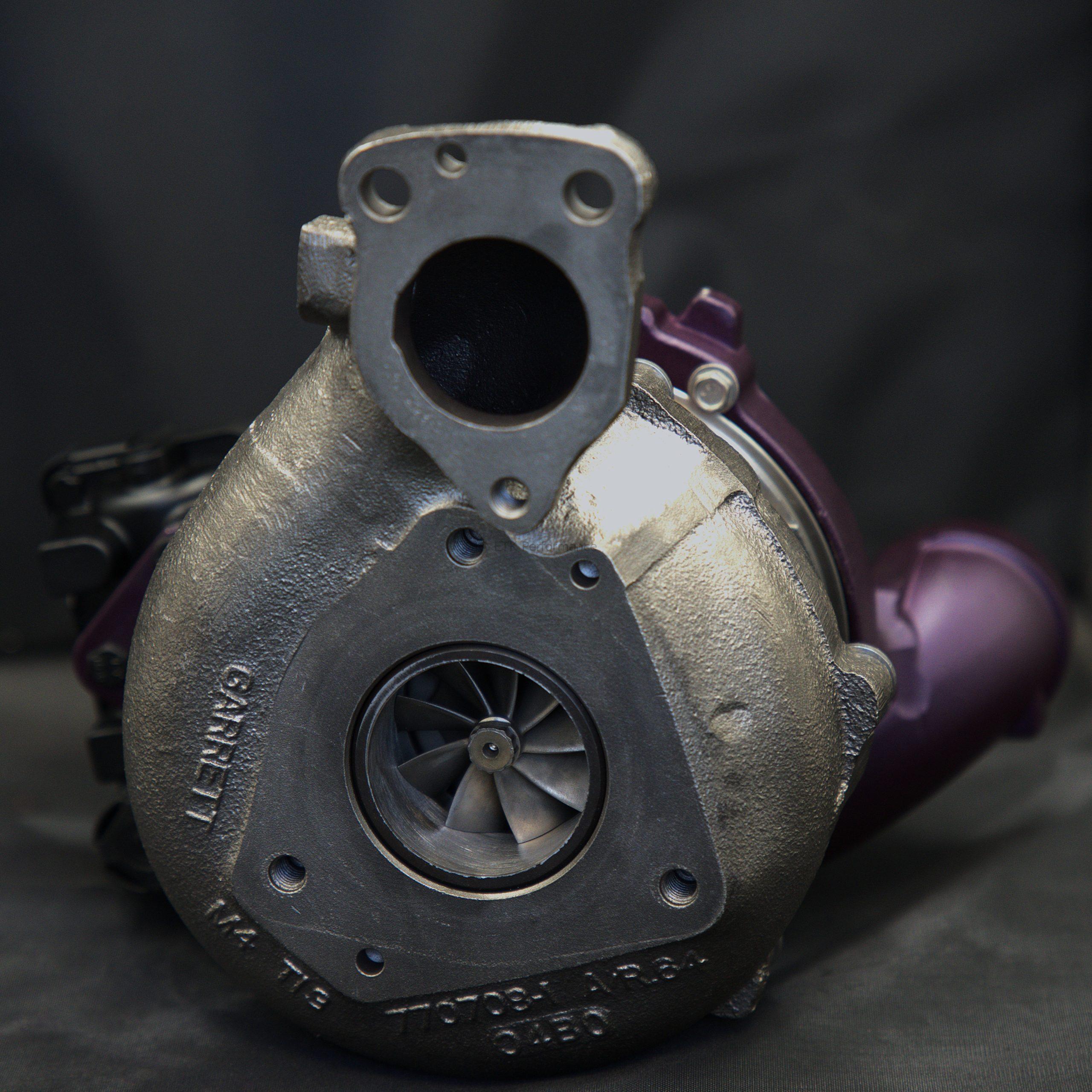

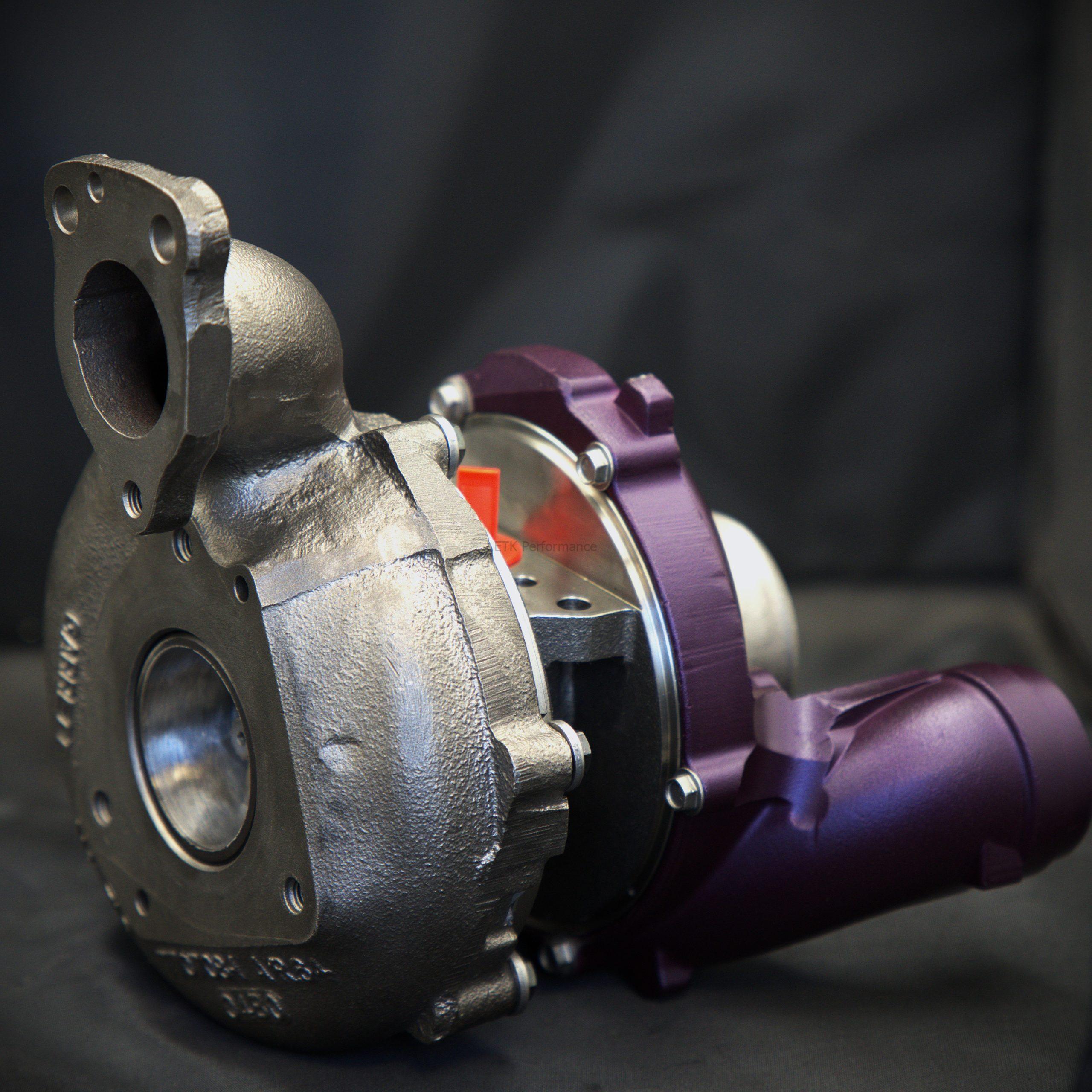

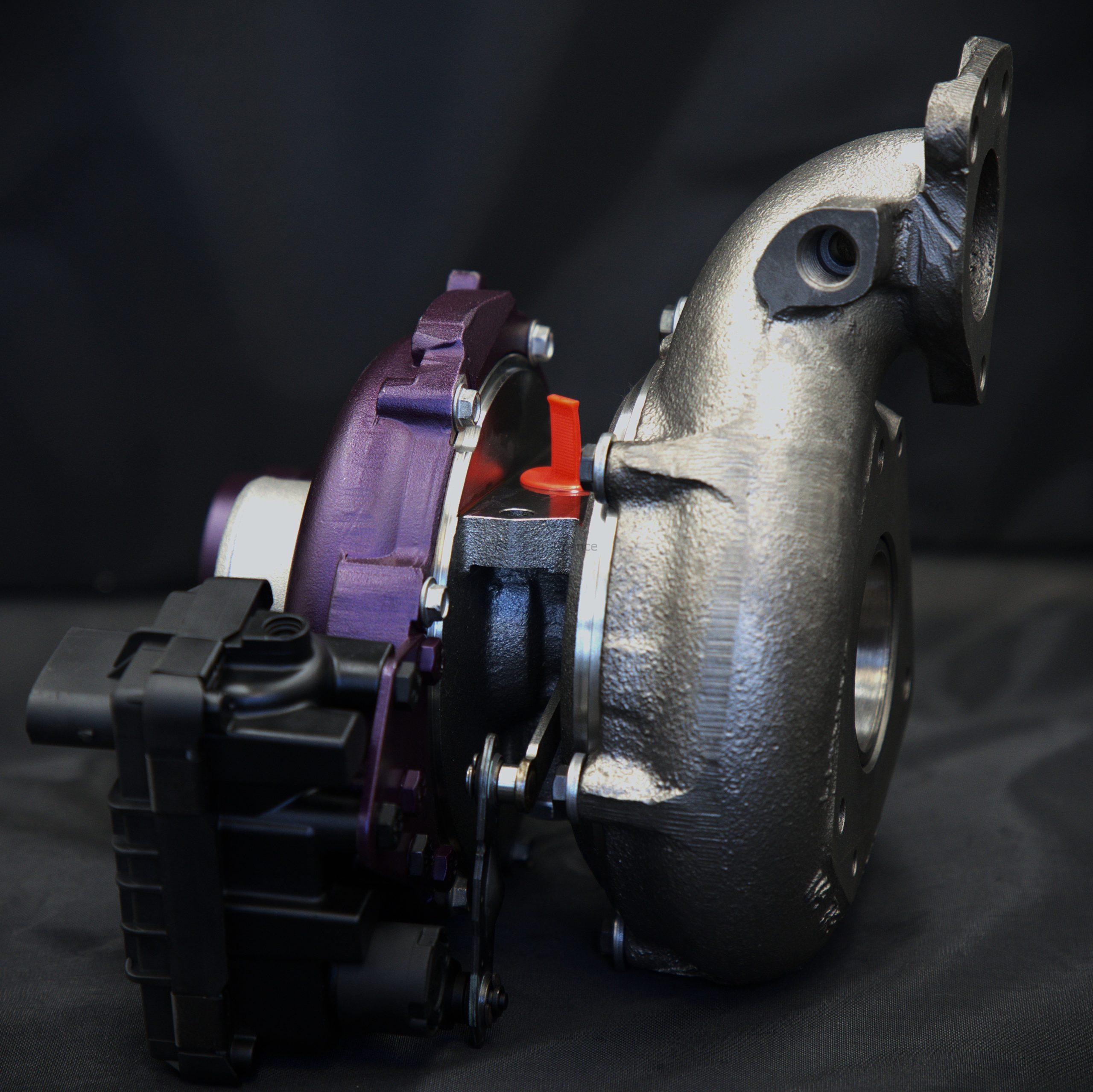

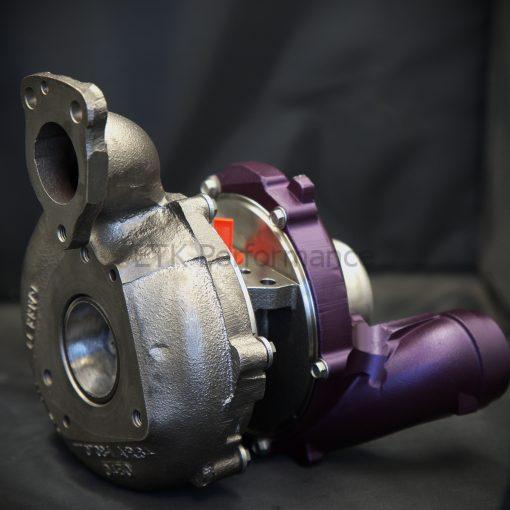

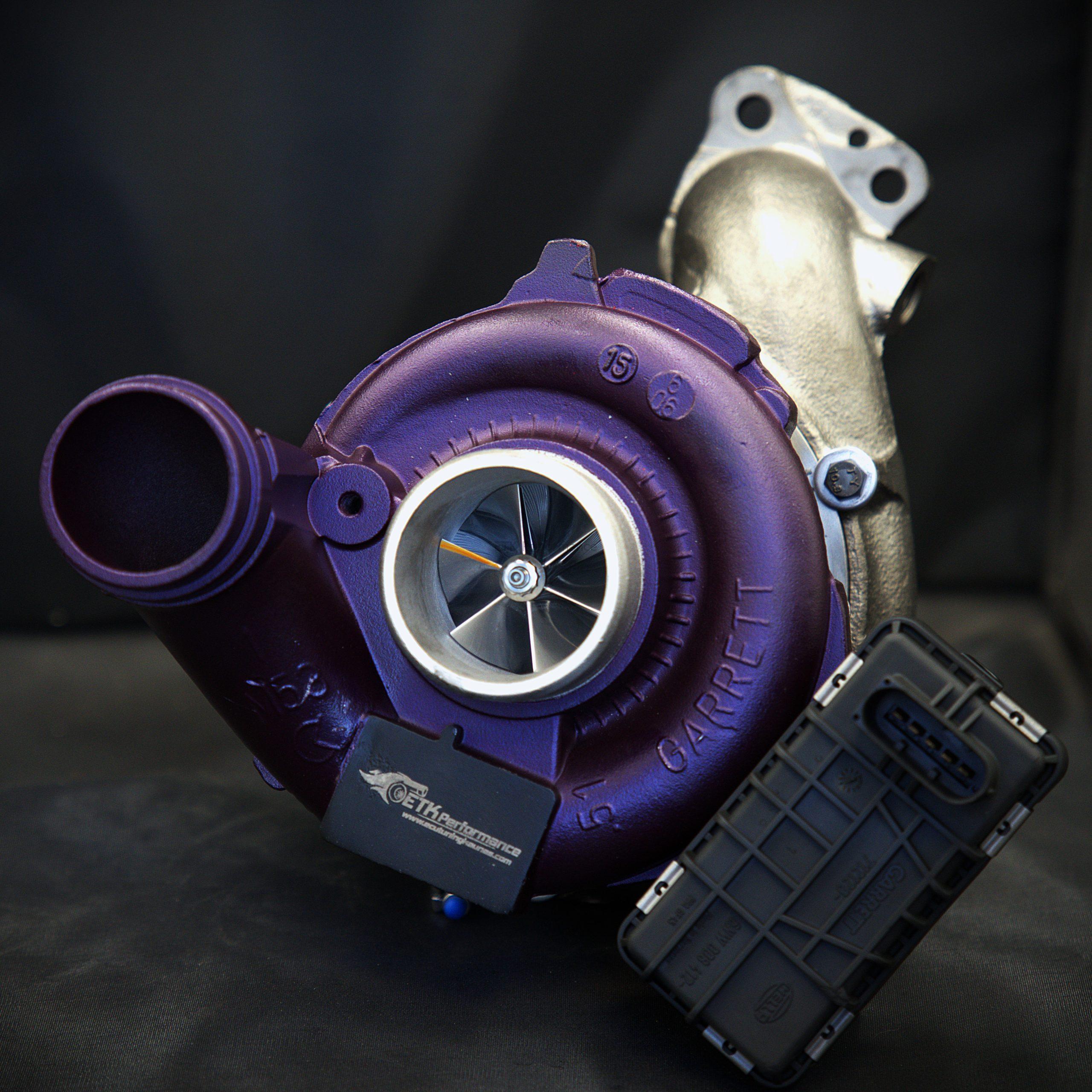

GT23V OEM Garrett OM613 3.2 CDI 6 cyl. - Inline Turbocharger
1 × 565,00 € -
×
Extra payment
1 × 25,00 €
Our team are manufacturing these turbochargers – not reselling. So parts and guarantee issues are solved instantly.
Approved by Blacksmokeracing LTD
Upgraded bearing system
Refurbished housings
Flow bench adjusted
Balanced on VSR
Manufactured from Garrett original turbocharger.
V1Common version up to 400 HP GT2865 :
Compressor Wheel – 50/65 mm
Turbine Wheel – 51/48
Shaft upgrade for lower backpressure (better than AMG one).
V2 upgraded version 2025 GT2868 400HP:

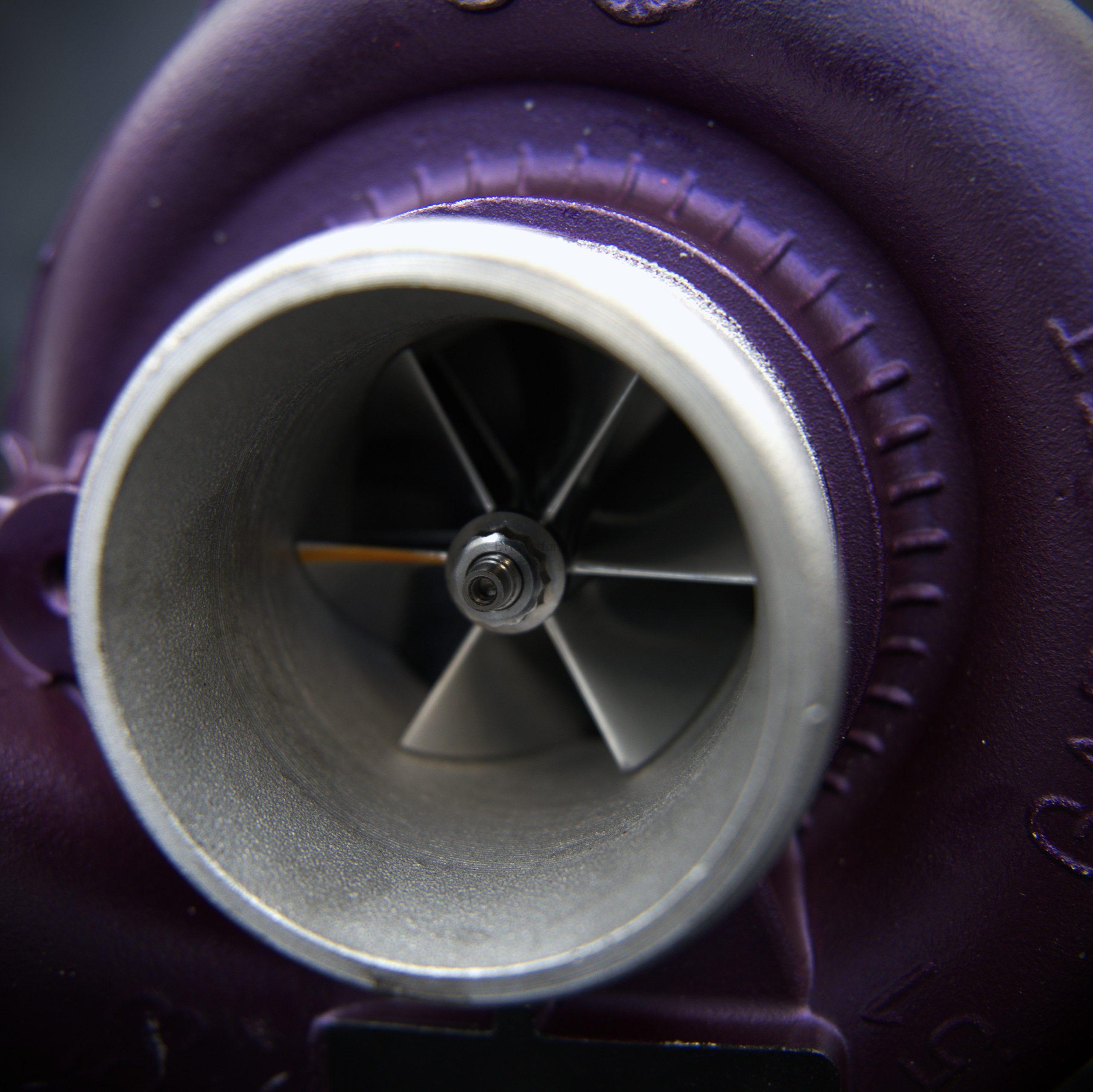

Lightweight Compressor Wheel – 50/68 mm
Lightweight Turbine Wheel – 51/48
MAX safe boost 2.7 bar or 39 PSI Turbocharger capable to make 390 HP.
Production time 1 – 2 weeks.
We can take up to 100 EUR discount for your core! CONTACT US!
Compatibility list
| Model | Year | Engine code | Power (KW / HP) | Part Number | OEM no. |
| Mercedes-Benz C-class 320 CDI (W203) | 2002 – 2007 | OM642 | 165 / 224 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 |
A6420905980
A642090598080 A6420901480 A6420900280 6420901480 6420900280 6420905980 |
| Mercedes-Benz E-class 320 CDI (W211) | 2005 – 2009 | OM642 | 165 / 224 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 |
A6420905980
A642090598080 A6420901480 A6420900280 6420901480 6420900280 6420905980 |
| Mercedes-Benz E-class 280 CDI (W211) | 2006 – 2009 | OM642 DE 30 | 140 / 190 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 |
A6420905980
A642090598080 A6420901480 A6420900280 6420901480 6420900280 6420905980 |
| Mercedes-Benz G-class 320 CDI (W164) | 2006 – 2009 | OM642 DE 30 | 165 / 224 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 |
A6420908780
A642090598080 A6420906380 A6420905980 A6420901480 A6420900280 6420900780 |
| Mercedes-Benz G-class 280 CDI (W461) | from 2007 | OM642 DE 30 | 135 / 184 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 |
A6420908780
A642090598080 A6420906380 A6420905980 A6420901480 A6420900280 6420900780 |
| Mercedes-Benz M-class 280 CDI (W164) | 2005 – 2009 | OM642 | 140 / 190 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 |
A6420905980
A642090598080 A6420901480 A6420900280 6420900780 |
| Mercedes-Benz M-class 320 CDI (W164) | 2005 – 2009 | OM642 | 165 / 224 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 |
A6420908780
A642090598080 A6420906380 A6420905980 A6420901480 A6420900280 6420900780 |
| Mercedes-Benz R-class 320 CDI (W251) | from 2005 | OM642 | 165 / 224 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 |
A6420908780
A642090598080 A6420906380 A6420905980 A6420901480 A6420900280 6420900780 |
| Mercedes-Benz R-class 280 CDI (W251) | 2007 – 2009 | OM642 | 140 / 190 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 |
A6420905980
A642090598080 A6420901480 A6420900280 6420900780 |
| Mercedes-Benz Sprinter II 218CDI/318CDI/418CDI/518CDI | 2006 – 2009 | OM642 | 135 / 184 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 |
A6420908780
A642090598080 A6420906380 A6420905980 A6420901480 A6420900280 6420900780 |
| Mercedes-Benz Viano 3.0 CDI (W639) | 2006 – 2008 | OM642 DE LA | 150 / 204 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 743507-0009 |
A6420905980
A642090598080 6420904980 6420903080 |
| Mercedes-Benz Vito 120 CDI (W639) | 2006 – 2008 | OM642 DE LA | 150 / 204 | 765155-5008S
765155-9007W 765155-5007S 765155-5004S 765155-0004 757608-0001 743507-0009 |
A6420905980
A642090598080 6420904980 6420903080 |
| Mercedes-Benz C-class 320 CDI (W203) | from 2007 | OM642 | 165 / 224 | 770895-5007S
770895-5002S 770895-0007 770895-0002 |
A6420902880
6420902880 |
| Mercedes-Benz E-class 350 CDI (W212) | from 2009 | OM642 | 170 / 231 | 777318-5002W
777318-9002W 777318-5002S 777318-5001S 781743-5003S 781743-5001S 764809-0004 764809-0002 |
A6420908880
A6420908680 A642090868080 A642090578080 A6420905780 A6420901680 A6420905880 6420901680 |
| Mercedes-Benz E-class 300 CDI (W212) | from 2010 | OM642 | 170 / 231 | 777318-5002W
777318-9002W 777318-5002S 777318-5001S 781743-5003S 781743-5001S 764809-0004 764809-0002 |
A6420908880
A6420908680 A642090868080 A642090578080 A6420905780 A6420901680 A6420905880 6420901680 |
| Mercedes-Benz GL-class 350 CDI (X164) | 2010 – 2012 | OM642 | 155 / 211 | 777318-5002W
777318-9002W 777318-5002S 777318-5001S 781743-5003S 781743-5001S 764809-0004 764809-0002 |
A6420908880
A6420908680 A642090868080 A642090578080 A6420905780 A6420901680 A6420905880 6420901680 |
| Mercedes-Benz M-class 320 CDI (W164) | 2005 – 2009 | OM642 | 165 / 224 | 777318-5002W
777318-9002W 777318-5002S 777318-5001S 781743-5003S 781743-5001S 764809-0004 764809-0002 |
A6420908880
A6420905880 A6420908980 A6420901680 6420908880 6420901680 |
| Mercedes-Benz Sprinter II 219CDI/319CDI/419CDI/519CDI | 2009 – 2013 | OM 642 DE 30 LA | 140 / 190 | 777318-5002W
777318-9002W 777318-5002S 777318-5001S 781743-5003S 781743-5001S 764809-0004 764809-0002 |
A6420905880
A6420908880 A6420908980 A6420901680 6420905880 6420908880 6420901680 |
| Weight | 10 kg |
|---|---|
| Dimensions | 40 × 40 × 40 cm |
| Turbocharger type | OM642 GT2865 V1, OM642 GT2868 V2 |
